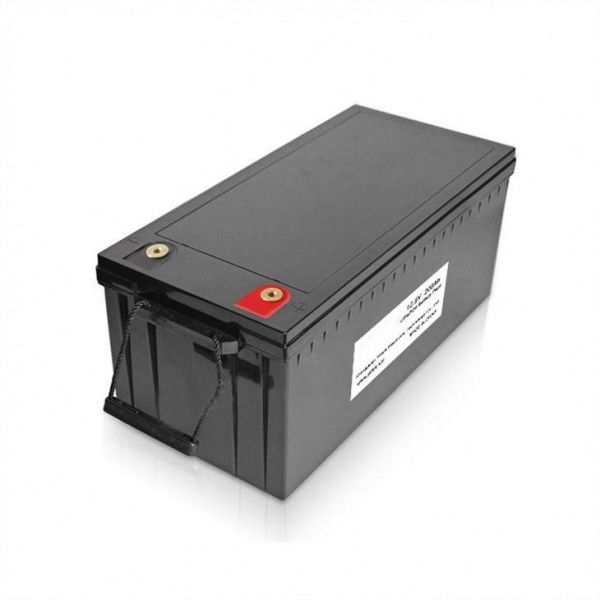

Deep Cycle 12V 200Ah RV LiFePO4 Battery Lithium Iron Phosphate

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard Packing Delivery Time : 15-30days
Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram Supply Ability : 1000 Pieces per day
Place of Origin: CHINA Brand Name: Benwei

Detail Information

Type: LiFePO4 Battery Nominal Capacity: 200Ah
Nominal Voltage: 12V Cycle Life: Over 2000cycles
Material: Lithium Iron Phosphate Warranty: 3 Years
High Light:

12V 200Ah RV LiFePO4 Battery

,

2560Wh Deep Cycle RV Battery

,

M8 Deep Cycle RV Battery

Product Description

Deep Cycle Solar Battery 12v 200ah Rechargeable Lithium Lifepo4 Battery With ABS Casing

Key Features :

1) Longer Cycle Life: Longer cycle life than a lead-acid battery, helping to minimize replacement cost and reduce total cost of ownership.
2) Lighter Weight: About 50% of the weight of a comparable lead-acid battery.

3) Higher Power: Delivers twice the power of the lead-acid battery, even high discharge rate, while maintaining high energy capacity

4) Wider Temperature Range: -20℃~60℃
4) Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation

Applications:

1) Wheelchairs and scooters;
2) Solar/wind energy storage;

3) Back-up power for small UPS;

4) Golf trolleys & buggies;
5) Electric bikes;

Electrical

Characteristics

Nominal Voltage

12.8V

Nominal Capacity

200Ah

Energy

2560Wh

Internal Resistance(AC)

≤20m

Cycle Life

>2000 cycles @ 1C 100% DOD

Months Self Discharge

<3%

Efficiency of Charge

100% @0.5C

Efficiency of Discharge

96~99% @1C

Standard Charge

Charge Voltage

14.6±0.2V

Charge Mode

0.2C to 14.6V, then 14.6V, charge current to 0.02C(CC/CV)

Charge Current

10A

Max. Charge Current

50A

Standard Discharge

Continuous Current

30A

Max. Pulse Current

150A(<3s)

Discharge Cut-off Voltage

10V

Environmental

Charge Temperature

0℃ to 55℃

Discharge Temperature

-20℃ to 60℃

Storage Temperature

-20℃ to 45℃

IP Class

IP65

Mechanical

Plastic Case

ABS

Approx. Dimensions

522*240*218mm

Approx. Weight

24kg

Terminal

M8

Advantages of LifePO4 battery:
1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap
2. Long life cycle over 2000 times;
3. It without heavy metals and environment friendly.
4. Maintenance free
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
6. No memory effect
7. High-temperature performance is good
9. High safety, no explosion, no fire
10. Low self-discharge rate,≤3%/month

Why choose us?
We do custom batteries according to your request.
Voltage from 3.2v to 48v
Capacity from 600mah to 150ah
Discharge rate: normal, 2C,3C,5C,10C,20C, etc.
We can customize the battery for you, send an inquiry with the below information now!
Battery information Appliance information
Size Appliance name
Capacity Normal working current
Cable length Peak current
Connector Working voltage range

Application: Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Forklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies


* Lithium iron phosphate battery is characterised by outstanding durability, current performance and charging speed. It also has a longer lifetime and is a more lightweight alternative to lead-acid batteries.

* LiFePO4 retain over 80% of their capacity even after 3,000 charging cycles and thus they provide over 7 years of operation. Due to its low self-discharge rate the battery will be fully ready for operation even after a year of storage.

* The long battery life and high durability, low weight and current parameters are the reasons why these batteries are used in leisure vehicles and campers, in boats and in photovoltaics providing power to homes using solar panels.

* Lithium iron phosphate batteries are equipped with a battery management system BMS which monitors not only the charge and discharge of the battery but also the temperature thus ensuring the safety of operation and maximising the battery life.
