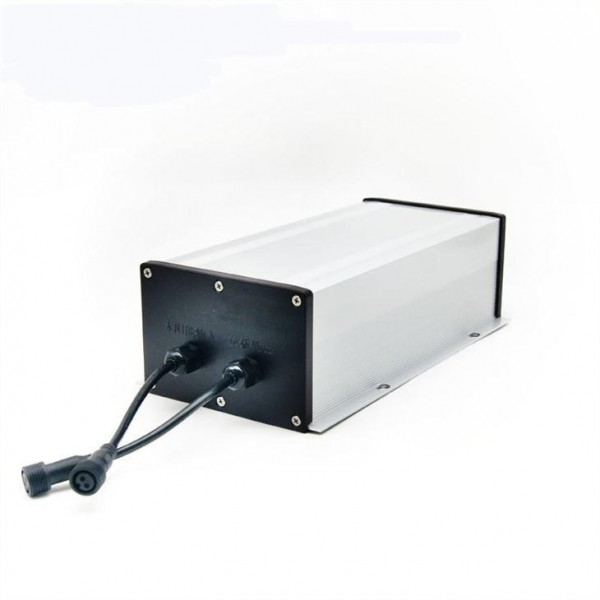

6300mAh Street Light Lithium Battery LiFePO4 12V 50Ah 4S8P Long Cycle Life

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard Packing Delivery Time : 15-30days
Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram Supply Ability : 1000 Pieces per day
Place of Origin: CHINA Brand Name: Benwei

Detail Information

Voltage: 12V Capacity: 50AH
Combination: 4S8P Peak Current: 150A
Charge Method: CC/CV Weight: About 5kg
High Light:

6300mAh Street Light Battery

,

4S8P Street Light Battery

,

Lithium Battery LiFePO4 12V 50Ah

Product Description

12V Solar Street Light Battery 50Ah

Keyfeature

1. Nominal Voltage 12.8V
2. Nominal Capacity 50Ah
3. Size 300*130*85mm

4. Original Grade A LiFePo4 Cell

5. Immediately delivery

6. High capacity, low impedance, stable characteristics

7. Long cycle life



Specification

Name Specification
Battery cell specification
Voltage 3.2v
Capacity 6300mAh
Size 32.5*70.1 (mm)
Charge cut-off voltage 3.65V
Discharge cut-off voltage 2.5V
Weight About 150g
Battery pack specification
Voltage 12V
Capacity 50Ah
Combination 4S8P+BMS+wire+connector+battery enclosure
Max constant discharging current 50A @ 1C
Peak Current 150A @ 3C
Max constant Charge current 50A @ 1C
Charge method CC-CV
Charge cut-off voltage 14.6V0.2
Discharge cut-off voltage 10V±0.2
Charge temperature 0℃~45℃
Discharge temperature -20℃~45℃
Storage temperature -20℃~45℃
Size 300*130*85mm or customize
Cycle life 80% DOD More than 2000 times
Weight About 5kg
Warranty 36 Months

Passed safety tests

1. Over-charge/Over-discharge Ability to withstand over-charge/withstand over-discharge, and there is no fire, no exploding and work well.
2. Short circuit Ability to withstand short circuit, and there is no fire, no exploding.
3. Acupuncture Ability to withstand nail puncturing and there is no fire, no exploding
4. Thermal shock Ability to withstand thermal shock, and there is no fire, no exploding





Why choose us?
We do custom batteries according to your request.
Voltage from 3.2v to 48v
Capacity from 600mah to 150ah
Discharge rate: normal, 2C,3C,5C,10C,20C, etc.
We can customize the battery for you, send an inquiry with the below information now!
Battery information Appliance information
Size Appliance name
Capacity Normal working current
Cable length Peak current
Connector Working voltage range
