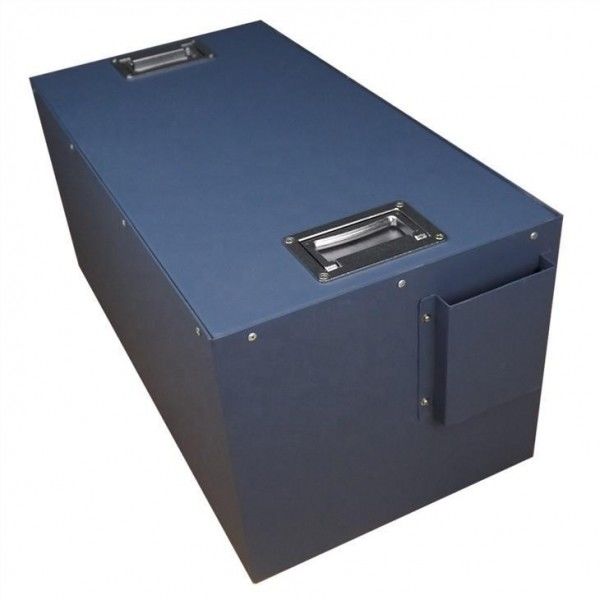

E Boat BMS 48V 200Ah LiFePO4 Battery Lithium Ion 10.24KWh Long Cycle Life

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard Packing Delivery Time : 15-30days
Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram Supply Ability : 1000 Pieces per day
Place of Origin: CHINA Brand Name: Benwei

Detail Information

Voltage: 51.2V Nominal Capacity: 200AH
Energy: 10.24KWh Cycle Life: 3000 Cycles
Standard Charge Current: 50A Max. Charge Current: 100A
High Light:

BMS 48V 200Ah LiFePO4 Battery

,

10.24KWh 48V 200Ah LiFePO4 Battery

,

E Boat 48V 200Ah Lithium Ion Battery

Product Description

48V 200Ah Marine Battery

Features:

1. Built-in BMS with full protection, the battery pack has high voltage protection with higher reliability;

2. The lithium phosphate material without heavy metals and eco-friendly;

3. Maintenance free & No memory effect

4. Long life cycle, 2000 times at 80% DOD.

5. Over temperature control and protection

Specifications:


Electrical Characteristics
Nominal Voltage
51.2V
Nominal capacity
200Ah
Energy
10.24KWh
Internal Resistance
≤ 60m
Cycle life
≥3000 cycles @1C 80%DOD
Months Self Discharge
<3%
Efficiency of Charge
100% @0.5C
Efficiency of Discharge
96~99% @1C

Standard Charge
Charge Cut-off Voltage
57.6±0.2V
Charge Mode
0.2C to 57.6V, then 57.6V,charge current to 0.02C (CC/CV)
Standard Charge Current
50A
Max. Charge Current
100A
Charge Cut-off Current
5A

Standard Discharge
Standard discharge Current
50A±1A
Max. Continuous discharge Current
150A±1A
Discharge Cut-off Voltage
42±0.2V

Environmental
Charge Temperature
0to 45(32F to 113F) @60±25% Relative Humidity
Discharge Temperature
-20to 60(-4F to 140F) @60±25% Relative Humidity
Storage Temperature
0℃ to 40(32F to 104F) @60±25% Relative Humidity
Mechanical
Housing Case
Metal
Dimensions (mm)
customized
Weight
Approx 100kg
Terminal
