5kWh LiFePO4 Battery Solar System 48V 100Ah RS485 Home Energy Storage

Minimum Order Quantity :	Negotiable	Price :	Negotiable
Packaging Details :	Standard Packing	Delivery Time :	15-30days
Payment Terms :	T/T,L/C,Western Union,Paypal and MoneyGram	Supply Ability :	1000 Pieces per day

Place of Origin:	CHINA	Brand Name:	Benwei

Detail Information
Capacity:	100Ah	Voltage:	48V
BMS:	Smart BMS	Communication Protocol:	RS485/RS232
Discharge Rate:	1-3C	Weight:	Around 50KG
High Light:	5kWh LiFePO4 Battery Solar System , 48V 100Ah LiFePO4 Battery Solar System , RS485 Home Energy Storage Battery

Product Description

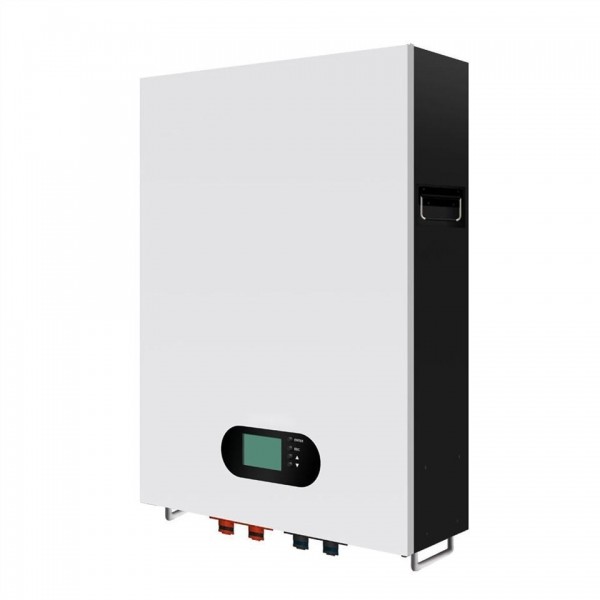

48V 100Ah 5Kwh RS485 Solar LiFePo4 Battery Module with 5U Cabinet

Features :
1. Use prismatic cell with 2000 cycles or 3000cycles @ 100% D.O.D;

2. Built-in Smart Battery Management System with RS485 protocol;

3. Very low self-discharge (<3% per month);

4. No Lead, no heavy metal, no toxic element;

5. About 50% lighter and 40% smaller than an equivalent Lead-Acid battery with same usable energy;

Specifications

Item	General Parameter
Rated Capacity	100Ah
Rated Voltage	48V
Discharge Ending Voltage	40V
Charge Limited Voltage	58.4V
Charging Current	20A/0.2C(Max)
Continuous Discharging Current	10A/0.1C(Max)
BMS	Smart BMS
Communication Protocol	RS485/RS232 or Customize
Cycle Life	2000 cycle @ 100% DOD
Discharge Rate	1-3C
Dimensions (LWH)	485385222mm/5U or Customize
Weight	Around 50KG
Operating Temperature	Charging: 0℃-45℃
Operating Temperature	Discharging:-20 to 60℃
Storage Temperature	-20 to + 60℃
Certification	UL/CE/ROHS/MSDS
Warranty	3 Years, enable to prolong

Why choose us?
We do custom batteries according to your request.
Voltage from 3.2v to 48v
Capacity from 600mah to 150ah
Discharge rate: normal, 2C,3C,5C,10C,20C, etc.
We can customize the battery for you, send an inquiry with the below information now!
Battery information Appliance information
Size Appliance name
Capacity Normal working current
Cable length Peak current
Connector Working voltage range
