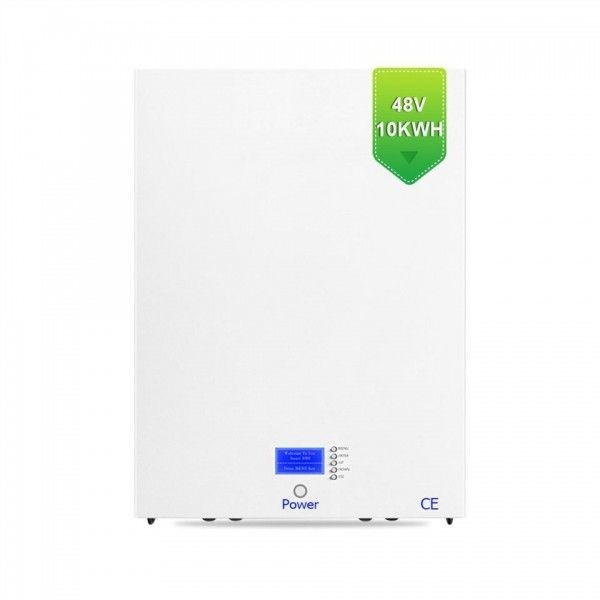

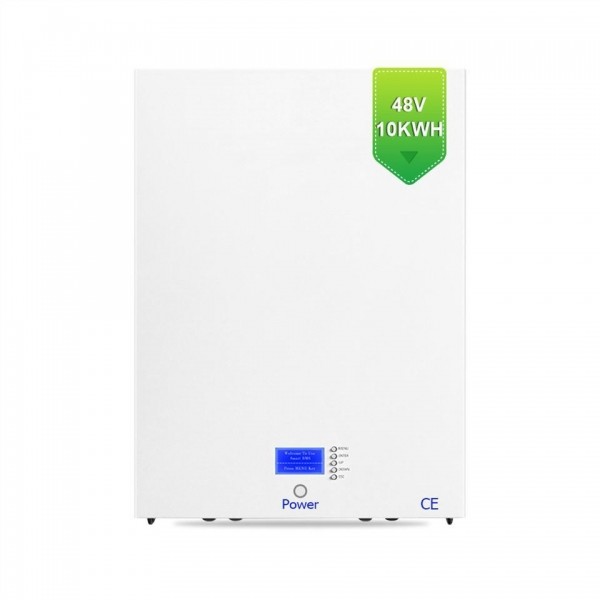

10kWh Power Wall Battery 48V 200Ah Solar Battery Backup System For Home

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard Packing Delivery Time : 15-30days
Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram Supply Ability : 1000 Pieces per day
Place of Origin: CHINA Brand Name: Benwei

Detail Information

Model: 48V 200Ah Energy: 10kWh
Charge Mode: 0.2C To 54V Charge Current: 60A
Max. Charge Current: 100A Cell & Method: 3.2V50Ah 16S4P
High Light:

10kWh Power Wall Battery

,

48V 200Ah Power Wall Battery

,

Solar Battery Backup System For Home

Product Description

LiFePo4 Power Wall Lithium Battery 48V 200Ah 10kWh Power Bank Wall Charger For Wind Solar UPS

Power Wall LiFePo4 Battery:

1. 48V 5kWh 7kWh 10kWh;

2. Up to 6000 cycle life;

3. 3 years warranty or more over;

4. RS485/CAN Communications;

5. Built-in BMS;

6. Parallel connection up to 14 units



Specifications:

Electrical Characteristics

Model

48V 200Ah (Customizable LCD)

Energy

10kWh

Months Self Discharge

<3%

Standard Charge

Charge Voltage

53.2-54V

Charge Mode

0.2C to 54V, then 54V,charge current to 0.02C (CC/CV)

Charge Current

60A

Max. Charge Current

100A

Charge Cut-off Voltage

57.6±0.2V

Standard
Discharge

Max continuous discharge current

200A

Discharge Cut-off Voltage

40V

Environmental

Charge Temperature

0to 45(32F to 113F) @60±25% Relative Humidity

Discharge Temperature

-20to 60(-4F to 140F) @60±25% Relative Humidity

Water Dust Resistance

Customizable

Mechanical

Cell & Method

3.2V50Ah 16S4P

Shell material

Iron

Dimensions (in./mm.)

Customized

Weight (lbs./kg.)

Approx: 85kg

Gravimetric specific energy

90.5Wh/KG
