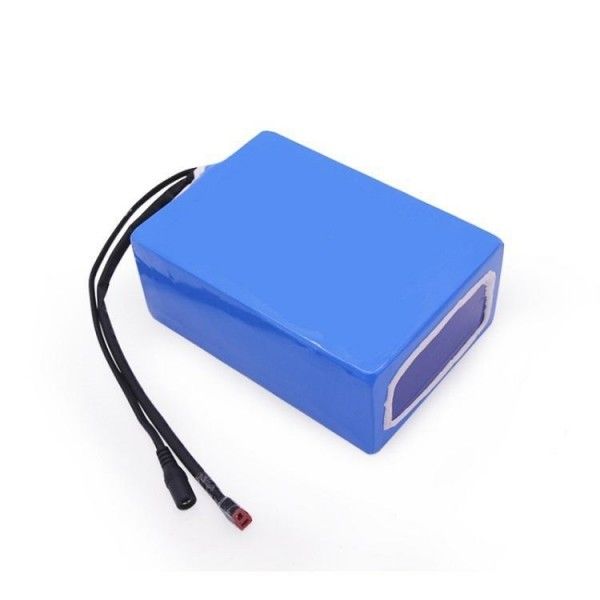

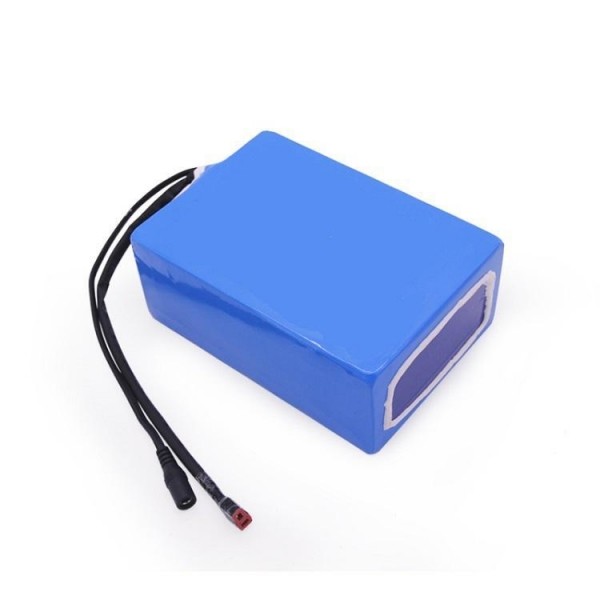

8S4P E Scooter Battery 614.4Wh 24V 20Ah Lithium Ion Battery Pack

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard Packing Delivery Time : 15-30days
Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram Supply Ability : 1000 Pieces per day
Place of Origin: CHINA Brand Name: Benwei

Detail Information

Cell Model: 32700/3.2V 6Ah Battery Specification: 32700/8S4P/25.6V/20Ah
Nominal Voltage: 25.6V Nominal Capacity: 20Ah
Energy: 614.4Wh Full Charge Voltage: 29.2V
High Light:

8S4P E Scooter Battery

,

614.4Wh E Scooter Battery

,

24V 20Ah Lithium Ion Battery Pack

Product Description

24V 20Ah Robotic Battery

Product Features:

1. Dust-proof and shock-resistant: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of dust-proof and shock-resistant.

2. Reliable connection: apply aviation connector, which is efficient, safe and reliable.

3. Charge automatically: charge automatically when the voltage decreases to 80%.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.



Specifications:

Cell model

32700/3.2V 6Ah

Battery specification

32700/8S4P/25.6V/20Ah

Nominal voltage

25.6V

Nominal capacity

20Ah

Energy

614.4Wh

Full charge voltage

29.2V

Discharge cut-off voltage

20V

Standard charging current

4.8A/0.2C

Instant discharging current

20A

Charge Method

CC/CV

Dimensions

Customize

Battery case

ABS Plastic or metal plate

Charging Temperature

0℃- 45℃

Discharging Temperature

-20℃ - 60℃

Storage Temperature

-20℃ to + 60℃

Certification

UL/IEC/ROHS/UN38.3

Warranty

36 months, enable to prolong

⊙FAQ:

Q1. Can Shenzhen MANLY Battery Co., Ltd. ship battery out of China?

R1: Yes, we can ship to any country out of China, you can tell us your address to check.

Q2. How does Shenzhen MANLY Battery Co., Ltd. ship the LiFePo4 battery packs?

R2: For sample orders or small battery packs, we can ship by express through FedEx, UPS, TNT, etc. If the whole parcel over 100KG, can ship by air or by sea, sea shipping is cheaper. Customers can tell your nearest airport name and seaport name for MANLY Battery salesperson to check the best option for you.

Q3. Can we put different LiFePO4 battery pack in parallel or series by ourself?

R3: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention to;

1> Make sure the voltage of each battery is the same before put in parallel. If they are not the same, charge them at the same rate.

2> Don't put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.

3> Advise us of the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.

4> If you are not professional in paralle




Application
Electrical Vehicles, electric mobility
Solar /wind energy storage system
UPS, backup power
Telecommunication
Medical equipment
And so on
