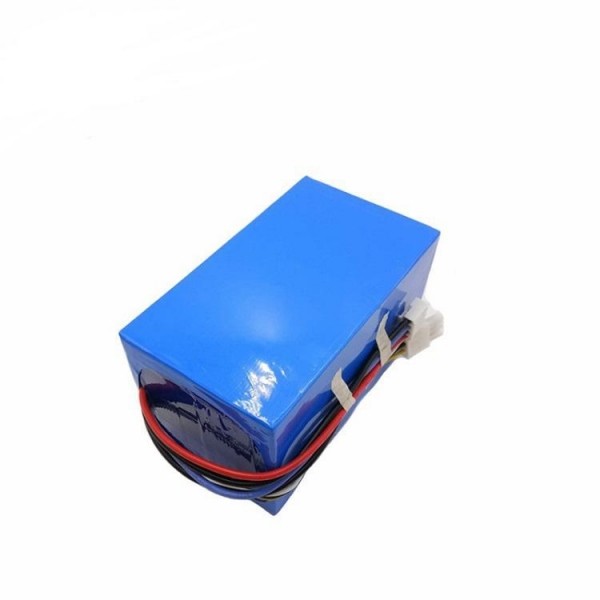

12S5P E Scooter Battery Pack LiFePO4 36 Volt 20Ah Lithium Battery Overcharge Protect

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard Packing Delivery Time : 15-30days
Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram Supply Ability : 1000 Pieces per day
Place of Origin: CHINA Brand Name: Benwei

Detail Information

Type: LiFePO4 Voltage: 36V
Capacity: 20Ah Cycle Life: 2000 Times
Protection: Overcharge Protect Size: Customized
High Light:

12S5P E Scooter Battery Pack

,

LiFePO4 36 Volt 20Ah Lithium Battery

,

E Scooter 36 Volt 20Ah Lithium Battery

Product Description

OEM 36V 20Ah Rechargeable Lithium Battery With 3.2V Lifepo4 Battery Cell For Mobility Scooter Electronic Forklifts

Feature:

1. Long cycle life, large capacity and good shock resistance

2. Low self-discharge and good discharge performance at low temperature

3. Strong charging acceptance and quick-charging capability

4. Strong over-discharge resistance and charge retention

5. Maintenance-free and no acid or water for maintenance in usage

6. Excellent large current discharge performance, and have obvious advantages in start up and climbing

7. High temperature performance, can up to 75℃

8. Environmental friendly

9. Lighter weight smaller size

10. Most safe no explosion no fire

Specifications:

Item

General Parameter

Remark

Model

36V 20Ah lifepo4 battery

12S5P 32700 LFP cell

Nominal Capacity

30Ah



Nominal Voltage

36V

Mean Operation Voltage

Weight

Around 9Kg

Dimension

230*195*170mm

Customized

Charge

Standard Charge Current 5.0A

Charge timeApprox 6h

Maximum Charge Current 10.0A

Charge timeApprox 4h

Charge Voltage 43.8V

Discharge

Continuous Discharge Current ≤30.0A

Maximum Instantaneous Discharge Current ≤90.0A

Discharge Cut-off Voltage 26.4V

Operation Temperature

Charge Temperature 0~45℃

Discharge Temperature-10~60℃

Over Charge Protection Voltage

3.65V±25mV

Over Charge Recovery Voltage

3.50V±25mV

Over Discharge Protection Voltage

2.0V±25mV

Over Discharge Recovery Voltage

2.3V±25mV

Over Current Protection Current

120A


Advantages of LifePO4 battery:
1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap
2. Long life cycle over 2000 times;
3. It without heavy metals and environment friendly.
4. Maintenance free
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
6. No memory effect
7. High-temperature performance is good
9. High safety, no explosion, no fire
10. Low self-discharge rate,≤3%/month

Why choose us?
We do custom batteries according to your request.
Voltage from 3.2v to 48v
Capacity from 600mah to 150ah
Discharge rate: normal, 2C,3C,5C,10C,20C, etc.
We can customize the battery for you, send an inquiry with the below information now!
Battery information Appliance information
Size Appliance name
Capacity Normal working current
Cable length Peak current
Connector Working voltage range

Application: Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Forklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
