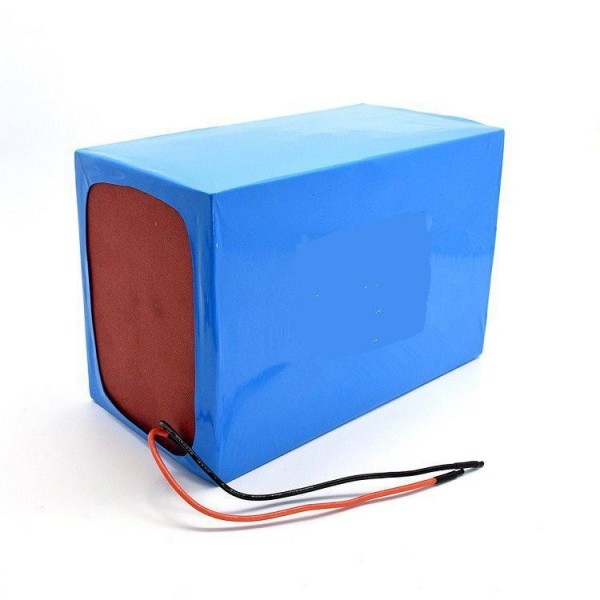

Tricycle 24V LiFePO4 Battery Pack 24Ah Lithium Iron Phosphate Deep Cycle Battery

LIFEPO4 Features:

1. High Performance and super compact;

2. Extremely safe & stable chemistry: It is non-explosive & will not catch fire under collision due to overcharging or from short circuit;

3. High discharge rate capability: When accelerating, the battery will have better powerful performance than other Lithium and NiMh batteries;

4. Long service lifeUp to over 10~5 years, up to 3000 cycles (under 80%DOD);

5. Deep Depth of Discharge (DOD): The batteries can be fully (100%) discharged;

6. Lead-acid batteries can only be discharged till 80%, otherwise they will be damaged, so with the same capacity the LiFePO4 battery is more powerful;

7. The voltage of LiFePo4 is 3.2V/cell, the voltage will also remain from 3.2V 3V within 85% of its discharge time.

24 Volt 30Ah Battery specification:

Nominal Voltage	24V
Nominal Capacity	24Ah(at 0.2C discharge rate)
Discharge	Standard discharge current	0.2C
	Max continuous current	2C (≤5min)
	Cut-off voltage	20.0V
Charge	Standard charge current	0.2C
	Charge mode	CC/CV
	Cut-off voltage	29.2±0.1V
Inner Resistance	Discharging Inner resistance	≤40m
Charge Temperature	0℃~+45℃	/
Discharge Temperature	-20℃~+60℃	/
Humidity Range	RH≤85%	/
Protection Function	Over charge protection,Over discharge protection,Over current protection,Balanced function
Shell Material	PVC or metal or ABS Plastic
Weight	About 6kg
Dimension	Customize
Cycle Life	Standard charge at 0.2C(A), rest 0.5~1 h,discharge at 0.2C to cut off voltage,rest 0.5~1h,repeat the above steps until 2000 cycles.( capacity retention rate≥80%)

Why choose us?
We do custom batteries according to your request.
Voltage from 3.2v to 48v
Capacity from 600mah to 150ah
Discharge rate: normal, 2C,3C,5C,10C,20C, etc.
We can customize the battery for you, send an inquiry with the below information now!
Battery information Appliance information
Size Appliance name
Capacity Normal working current
Cable length Peak current
Connector Working voltage range



Advantages of LifePO4 battery:
1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap
2. Long life cycle over 2000 times;
3. It without heavy metals and environment friendly.
4. Maintenance free
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
6. No memory effect
7. High-temperature performance is good
9. High safety, no explosion, no fire
10. Low self-discharge rate,≤3%/month
