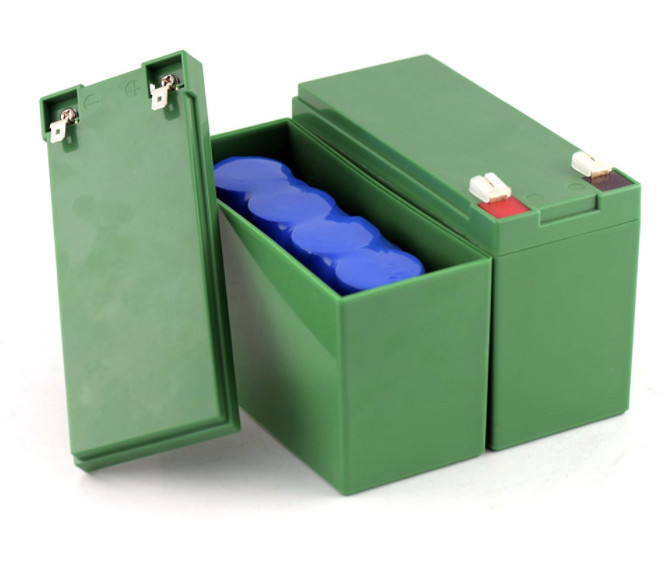

12V 7Ah Lifepo4 Battery Cell UPS System Lithium Iron Phosphate Cell

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard Packing Delivery Time : 15-30days
Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram Supply Ability : 1000 Pieces per day
Place of Origin: CHINA Brand Name: Benwei

Detail Information

Nominal Voltage: 12.8V Capacity (amp Hours): 7Ah
Chemistry: Lithium Iron Phosphate (LiFePO4) Capacity (watts): 90W
Continuous Charge Rate: 7A Weight: 3.5 Lbs (1.5kg)
Cell Type: Cylindrical Peak Discharge (10 Sec): 15A
High Light:

7Ah Lifepo4 Battery Cell

,

UPS Lifepo4 Battery Cell

,

Lifepo4 Lithium Iron Phosphate Cell

Product Description

12V 7Ah Lifepo4 Battery Cell UPS System Lithium Iron Phosphate Cell



12V 7Ah Lifepo4 Battery Cell Lithium Iron Phosphate Deep Cycle



POWER & ENERGY





Nominal Voltage

12.8V

Charge Voltage

14.4V - 14.6V

Peak Discharge (10 Sec)

15A

Continuous Charge / Discharge Rate

7A

Capacity (amp hours)

7AH

Capacity (watts)

90W

Chemistry

Lithium Iron Phosphate (LiFePO4)

Deep cycle life

2500 times, 85%dod,5000 times at 65%

Cell Type

Cylindrical

Depth of Discharge

100% DOD

Modular

Parallel Connection

Charge Temperature

0℃ to 45℃(32℉ to 113℉)

Discharge Temperature

-20℃ to 60℃(-4℉ to 140℉)

Storage Temperature

0℃ to 45℃(32℉ to 113℉)



SIZE & WEIGHT





Model

DEL-1207

Weight

3.5 lbs (1.5kg)

Size

151*65*95mm (6*2.6*3.7 inches) (L*W*H)



Description of

12V 7Ah Lithium Iron Phosphate Lifepo4 Battery

This 12.8V 7Ah battery is equipped with A grade 3.2V LifePo4 Cylindrical battery cells and high-quality BMS.

Our 12.8 V 7 AH Lifepo4 Lithium Battery is plug and play for starting or deep cycle applications requiring a lightweight lithium battery to replace 12v 7ah sealed lead acid battery. It’s time to upgrade your heavy lead acid batteries to LiFePO4 batteries and upgrade your lifestyle and ability to adventure!



LIFECYCLES (BATTERY LIFESPAN) Up to 80% capacity for 2,500 cycles in recommended conditions. The typical SLA has 500 cycles. Our Lithium batteries last so long that the price per use is a fraction of traditional batteries



OEM welcome: voltage/capacity/size/connector/display/color, etc



Application:
UPS system
Telecommunication system
Power station system
Railway system
Emergency lighting system
Automatic control system
Alarm systems for fire protection ,security
Solar,wind powered systems
Portable instruments
Medical equipment
Marine Equipment
Electric instruments
.etc.



Advantages of LifePO4 battery:
1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap
2. Long life cycle over 2000 times;
3. It without heavy metals and environment friendly.
4. Maintenance free
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
6. No memory effect
7. High-temperature performance is good
9. High safety, no explosion, no fire
10. Low self-discharge rate,≤3%/month



* Lithium iron phosphate battery is characterised by outstanding durability, current performance and charging speed. It also has a longer lifetime and is a more lightweight alternative to lead-acid batteries.

* LiFePO4 retain over 80% of their capacity even after 3,000 charging cycles and thus they provide over 7 years of operation. Due to its low self-discharge rate the battery will be fully ready for operation even after a year of storage.

* The long battery life and high durability, low weight and current parameters are the reasons why these batteries are used in leisure vehicles and campers, in boats and in photovoltaics providing power to homes using solar panels.

* Lithium iron phosphate batteries are equipped with a battery management system BMS which monitors not only the charge and discharge of the battery but also the temperature thus ensuring the safety of operation and maximising the battery life.



ShenZhen Benwei Lighting Technolohgy Co., Ltd

Benwei Company has four production lines for solar battery, motorcycle battery, Electric vehicle battery,RV battery and Motorcycle start battery. With Incoming material inspection area to test the materials to ensure the every battery packs are good quality.
