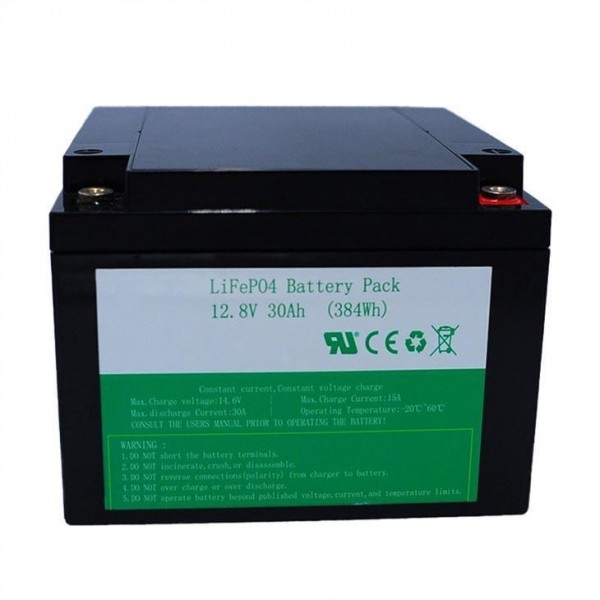

384Wh LiFePO4 Battery Pack 4S5P 12V 30Ah Motorcycle Battery With BMS

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard Packing Delivery Time : 15-30days
Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram Supply Ability : 1000 Pieces per day
Place of Origin: CHINA Brand Name: Benwei

Detail Information

Battery Type: 12V 30AH Lifepo4 Battery Weight: Around 3.9KG
Dimension: 165*175*125*125mm Application: Toys/Power Tools/Golf Carts
High Light:

384Wh LiFePO4 Battery Pack

,

4S5P LiFePO4 Battery Pack

,

12V 30Ah Motorcycle Battery

Product Description

Eco-Sources Deep Cycle Rechargeable 12v 30ah Lifepo4 Battery For Solar / Power Tools/ UPS

Features:

Warranty:3 years

Battery Type:12V 30AH Lifepo4 Battery

Certification:CE/RoHS/UN38.3/MSDS/TUV/CB/CQC

Model Number: LFP12.8V 30AH

Place of Origin: Guangdong, China

Weight: Around 3.9KG

Battery type: LiFePO4

Nominal Voltage:12V/24V/36V/48V/Optional

Nominal Capacity: 7.5Ah/20Ah/40Ah/60Ah/100Ah/200Ah/300Ah/400Ah

Cycle life: Over 2000 Times

Anode Material: Lithium Cobalt Oxide

Socket: Waterproof Type

Cell type: LFP32700

Protection: Built-in Smart BMS

OEM/ODM: Welcomed

Dimension: 165*175*125*125mm

Application: Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Forklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies



Specifications:

Deep cycle Rechargeable 12V 30Ah LiFePO4 Battery with BMS

Electric Characteristics

Rated Capacity

30Ah

Energy

384Wh

Nominal Voltage

12V

Specific Energy

102.4Wh/kg

Internal Resistance

≤50m

Cycle Life

2000+

Charging and Discharging Parameters

Charge cut-off volt

14.6V

Discharge cut-off volt

10V

Maximum Charge current

30A

Maximum Discharge current

30A

Peak Discharge current

14.6V

Suggested charge Volt

14.6V

Operation Temperature Parameters

Storage Temperature Parameters

Charge

0~45℃

Less than a year

0~25℃

Discharge

-20~60℃

Less than three months

-10~35℃

Recommended

18~28℃



Mechanical Properties

Dimension Length

165mm
(6.49 inches)

Housing materials

ABS

Dimension Width

125mm
(4.92 inches)

Terminal size

M6/M8 optional

Dimension Height

175mm
(6.89 inches)

Cell model

3.2v 6ah

Weight

About 6.5kg

Configuration

4S5P

BMS function

Protect battery from Overcharge, Over-discharge, Over-current, Short circuit

Advantage

High safety
(no fire, no explosion)

Lightweight

High energy density

Long lifespan

Environmentally friendly

Waterproof

No memory effect

Easy maintenance

Packing & Delivery:

Factory standard packing or customized

Why choose us?
We do custom batteries according to your request.
Voltage from 3.2v to 48v
Capacity from 600mah to 150ah
Discharge rate: normal, 2C,3C,5C,10C,20C, etc.
We can customize the battery for you, send an inquiry with the below information now!
Battery information Appliance information
Size Appliance name
Capacity Normal working current
Cable length Peak current
Connector Working voltage range

Advantages of LifePO4 battery:
1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap
2. Long life cycle over 2000 times;
3. It without heavy metals and environment friendly.
4. Maintenance free
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
6. No memory effect
7. High-temperature performance is good
9. High safety, no explosion, no fire
10. Low self-discharge rate,≤3%/month
