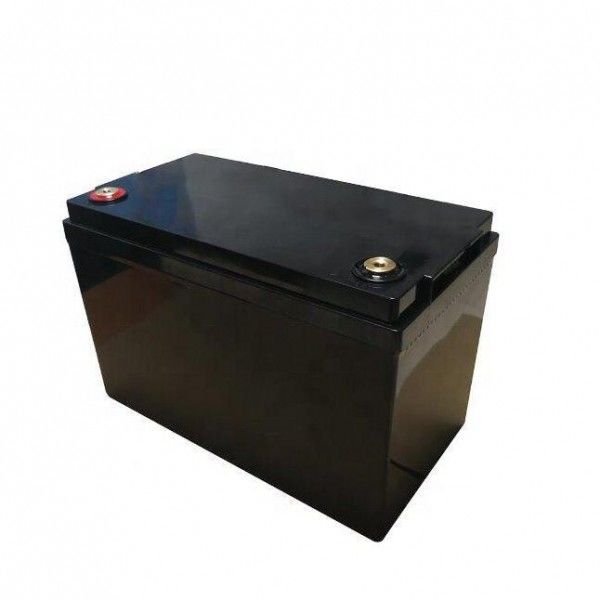

24V 100Ah AGV battery with smart BMS CAN RS485 protocol, using 32700 battery cell, 8S17P assembly, high energy density, long cycle life 2000+ times, 300A peak discharge current, continuous discharge current 60A.
Features:
1. Long life cycle, large capacity and good shock resistance
2. Low self-discharge and good discharge performance at low temperature
3. Strong charging acceptance and quick-charging capability
4. Strong over-discharge resistance and charge retention
5. Maintenance-free and no acid or water for maintenance in usage
6. Excellent large current discharge performance, and have obvious advantages in start up and climbing
7. High temperature performance
8. Lighter weight smaller size
Characteristics:
|
Characteristics
|
Parameter
|
Condition
|
|
Nominal Capacity
|
100Ah
|
Minimum capacity98Ah
|
|
Nominal Voltage
|
25.6V
|
|
Max charge voltage
|
28.4±0.2V
|
|
Discharge Cut-off Voltage
|
20-22V
|
|
Standard Charge Current
|
20A
|
|
Standard Discharge Current
|
20A
|
|
Max continuous charge current
|
60A
|
|
Max continuous discharge current
|
60A
|
|
Max. Pulse Discharge Current
|
300A
|
|
Cycle life
|
>2000
|
80%DOD@ 0.2C
|
| Operating Temperature |
Charge, 0℃ ~ 45℃
|
|
Discharge, -10℃ ~ 60℃
|
|
Storage Temperature
|
-20 ~ 45℃
|
≤ 1 month
|
|
-20 ~ 35℃
|
≤ 3 months
|
|
-20 ~ 25℃
|
≤ 12 months
|
|
25℃
|
> 12months
|
Advantages of LifePO4 battery:
1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap
2. Long life cycle over 2000 times;
3. It without heavy metals and environment friendly.
4. Maintenance free
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
6. No memory effect
7. High-temperature performance is good
9. High safety, no explosion, no fire
10. Low self-discharge rate,≤3%/month
Why choose us?
We do custom batteries according to your request.
Voltage from 3.2v to 48v
Capacity from 600mah to 150ah
Discharge rate: normal, 2C,3C,5C,10C,20C, etc.
We can customize the battery for you, send an inquiry with the below information now!
Battery information Appliance information
Size Appliance name
Capacity Normal working current
Cable length Peak current
Connector Working voltage range
Application: Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Forklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
