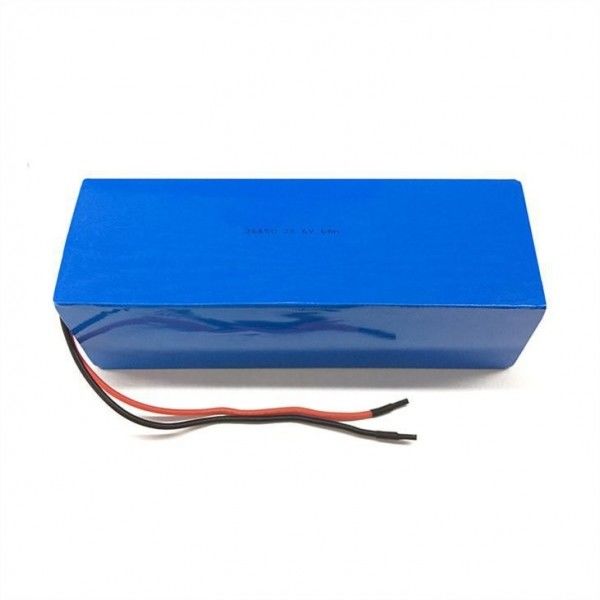

24V 6Ah Lithium Ion Battery Pack 8S2P Li Ion Stable Discharge Platform

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard Packing Delivery Time : 15-30days
Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram Supply Ability : 1000 Pieces per day
Place of Origin: CHINA Brand Name: Benwei

Detail Information
High Light:

24V 6Ah Lithium Ion Battery Pack

,

8S2P Lithium Ion Battery Pack

,

24V 6Ah Li Ion Battery Pack

Product Description

IEC62133 Rechargeable 26650 8S2P Lifepo4 6Ah 24v Lithium Battery Pack For Backup Power 25.6 Volt

Product Description:

1.Model: IFR 26650 8S2P

2.Voltage:24V/25.6V

3.Capacity:6Ah

4.For backup power

5.Dimension: 69*62*215mm

Parameter Table:

Capacity

6.0Ah (Typical) @ 0.2C discharge

5.7Ah (Min)

Nominal Voltage

25.6V (Average)

AC Impedance Resistance

≤280m

Discharge Cut-off Voltage

20.0V

Charge Current

1.2A @ Standard Charge

Charge Voltage

29.2V

Charge Time

Approx 6.0h @ 0.2C

Max. Charge Current

6.0A (Customized)

Max. Continuous discharge Current

6.0A

Peak discharge current

12A

Weight

Around 1.4 kg

Operating Temperature

Charge: 0~+45℃/Discharge:-20~+60℃

Remark: If you have other questions please don't hesitate to contact us, we can solve all your problems!

Our advantages:

1) Environmental friendly.
2) High density of energy.
3) High capacity.
4) Fast charging.
5) Safety in use.
6) Long cycle life, chargeable up to 7000 times.
7) No memory effect.
8) Doesn’t contain Mercury, No fire, No explosion, No leakage.
9) High-temperature resistance.
10) Stable discharge platform, it is can support large current and high power to charging and discharging.

Applications:

1) Wind-Solar energy system

2) Solar street LED lights

3) Telecom backup system

4) Mobile base stations

5) Electric vehicles

6) Golf carts



Advantages of LifePO4 battery:
1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap
2. Long life cycle over 2000 times;
3. It without heavy metals and environment friendly.
4. Maintenance free
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
6. No memory effect
7. High-temperature performance is good
9. High safety, no explosion, no fire
10. Low self-discharge rate,≤3%/month



Why choose us?
We do custom batteries according to your request.
Voltage from 3.2v to 48v
Capacity from 600mah to 150ah
Discharge rate: normal, 2C,3C,5C,10C,20C, etc.
We can customize the battery for you, send an inquiry with the below information now!
Battery information Appliance information
Size Appliance name
Capacity Normal working current
Cable length Peak current
Connector Working voltage range
