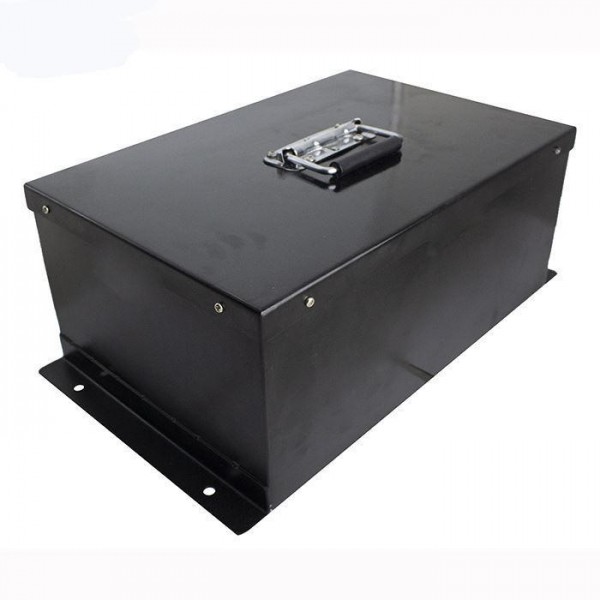

Deep Cycle 72V 45Ah 18650 Lithium Ion Battery Pack for Electric Bike
Contact Person : Huang
Phone Number : +86-13691631171
WhatsApp : +8613691631171
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Standard Packing | Delivery Time : | 15-30days |
Payment Terms : | T/T,L/C,Western Union,Paypal and MoneyGram | Supply Ability : | 1000 Pieces per day |
Place of Origin: | CHINA | Brand Name: | Benwei |
---|
Detail Information |
|||
Battery Type: | LiFePo4 Battery 60V 40Ah | Voltage: | 60V |
---|---|---|---|
Capacity: | 40Ah | Cell Assembly: | 32700-3.2V 6AH-18S7P |
Charge Model: | CC/CV | Weight: | Around 15kgs |
High Light: | Lithium Ion Battery 60V 40Ah,18S7P AGV Lithium Battery,60V 40Ah AGV Lithium Battery |
Product Description
Battery Type
|
LiFePo4 battery 60V 40Ah
|
|
Nominal Voltage
|
60V
|
|
Nominal Capacity
|
40Ah
|
|
Cell Assembly
|
32700-3.2V 6AH-18S7P
|
|
Charge
|
Charge Model
|
CC/CV
|
Charging Time
|
10A Charger: 4Hours
|
|
Charge Cut-off Voltage
|
67.2V
|
|
Cell Overcharge Protection Voltage
|
4.2V/Cell
|
|
Discharge
|
Max Continuous Discharge Current
|
40A
|
Peak Discharge Current
|
150A
|
|
Discharge Cut-off Voltage
|
40 v +-1V
|
|
Cell Over-discharge Protection Voltage
|
2.5V/Cell
|
|
Working Temperature
|
Standard Charge
|
0~45°C
|
Quick Charge
|
10~45°C
|
|
Standard Discharge
|
-20~65°C
|
|
60V16S BMS
|
40A BMS
(Over-Charge/Discharge Protection, Over-Heat Protection) |
|
Dimension
|
420*280*220mm
|
|
Weight
|
around 15kgs
|
|
Application
|
LED, AGV, Robotic, etc.
|
Advantages:
1) Environmental friendly
2) High density of energy
3) Lightweight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500-800 times
7) No memory effect
8) Doesn't contain Mercury, No fire, No explosion, No leakage
Applications:
1) Wind-Solar energy system
2) Solar street LED lights
3) Telecom backup system
4) Mobile base stations
5) Electric vehicles
6) Golf carts
Advantages of LifePO4 battery:
1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap
2. Long life cycle over 2000 times;
3. It without heavy metals and environment friendly.
4. Maintenance free
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
6. No memory effect
7. High-temperature performance is good
9. High safety, no explosion, no fire
10. Low self-discharge rate,≤3%/month
