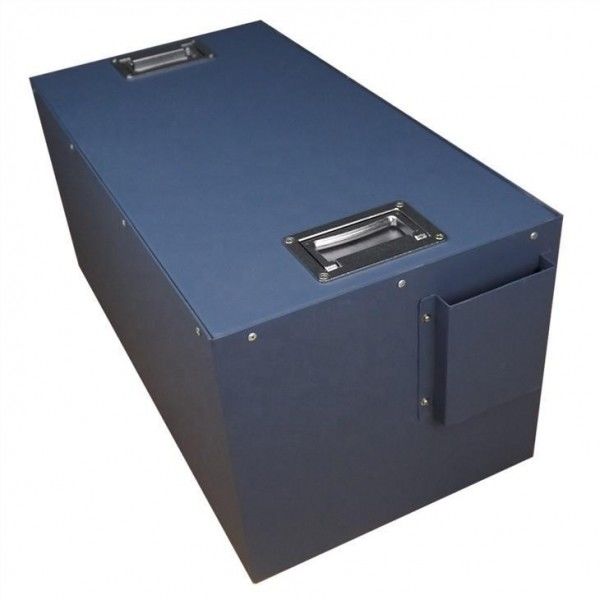

E Boat BMS 48V 200Ah LiFePO4 Battery Lithium Ion 10.24KWh Long Cycle Life

Minimum Order Quantity :	Negotiable	Price :	Negotiable
Packaging Details :	Standard Packing	Delivery Time :	15-30days
Payment Terms :	T/T,L/C,Western Union,Paypal and MoneyGram	Supply Ability :	1000 Pieces per day

Place of Origin:	CHINA	Brand Name:	Benwei

Detail Information
Voltage:	51.2V	Nominal Capacity:	200AH
Energy:	10.24KWh	Cycle Life:	3000 Cycles
Standard Charge Current:	50A	Max. Charge Current:	100A
High Light:	BMS 48V 200Ah LiFePO4 Battery , 10.24KWh 48V 200Ah LiFePO4 Battery , E Boat 48V 200Ah Lithium Ion Battery

Product Description

48V 200Ah Marine Battery

Features:

1. Built-in BMS with full protection, the battery pack has high voltage protection with higher reliability;

2. The lithium phosphate material without heavy metals and eco-friendly;

3. Maintenance free & No memory effect

4. Long life cycle, 2000 times at 80% DOD.

5. Over temperature control and protection

Specifications:

Electrical Characteristics	Nominal Voltage	51.2V
	Nominal capacity	200Ah
	Energy	10.24KWh
	Internal Resistance	≤ 60m
	Cycle life	≥3000 cycles @1C 80%DOD
	Months Self Discharge	<3%
	Efficiency of Charge	100% @0.5C
	Efficiency of Discharge	96~99% @1C
Standard Charge	Charge Cut-off Voltage	57.6±0.2V
	Charge Mode	0.2C to 57.6V, then 57.6V,charge current to 0.02C (CC/CV)
	Standard Charge Current	50A
	Max. Charge Current	100A
	Charge Cut-off Current	5A
Standard Discharge	Standard discharge Current	50A±1A
	Max. Continuous discharge Current	150A±1A
	Discharge Cut-off Voltage	42±0.2V
Environmental	Charge Temperature	0to 45(32F to 113F) @60±25% Relative Humidity
	Discharge Temperature	-20to 60(-4F to 140F) @60±25% Relative Humidity
	Storage Temperature	0℃ to 40(32F to 104F) @60±25% Relative Humidity
Mechanical	Housing Case	Metal
	Dimensions (mm)	customized
	Weight	Approx 100kg
	Terminal
