Product Description

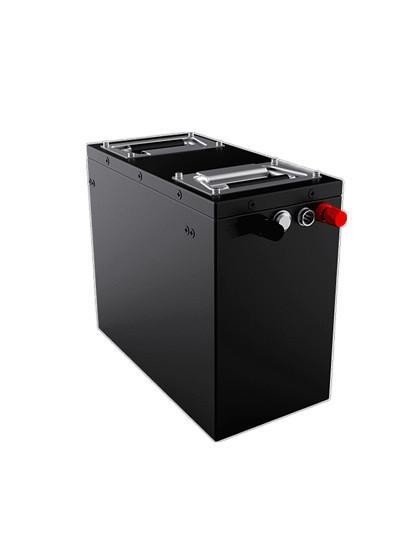

48V 25Ah Intelligent Robot Battery
48V 25Ah 26650 AGV pipe gallery intelligent robot energy storage lithium battery RS485 communication
48V LiFePo4 Battery Features:
1. Lighter in weight;
2. Use grade A lifepo4 battery cells;
3. More than 2000 cycle times;
4. Support connect in parallel and series;
5. Maintenance free.
Parameters:
|
Product Name
|
48V Robotic Battery
|
|
Nominal Voltage
|
51.2V(16S)
|
Nominal Capacity
|
25Ah
|
|
Charge Voltage
|
58.4V
|
Working Current
|
0.2C
|
|
Charge Current
|
0.2C/MAX
|
Peak Current
|
0.2C(Customized)
|
|
Operating Temperature
|
Charging:0~45℃ Discharging:-20~60℃
|
|
Cycle life
|
Over 2000 Cycles (100%DOD)
|
|
Mechanical
|
Cell & Method
|
3.2V 3200mAh 16S8P
|
|
Case
|
Metal
|
|
Dimensions (in./mm.)
|
Customized
|
|
Weight (lbs./kg.)
|
About 16KG
|
FAQ:
Q: Can I have a sample order for Battery?
A: Yes, we welcome sample order to test and check quality.
Q: How about the quality?
A: All of the batteries will be tested strictly before delivery.
Q: How about the lead time?
A: Usually, we have some inventories in the factory. Samples will take 3-7 working days. Mass goods will takes 25-30 days. It depends on the quantity.
Q: How long of the shipping time?
A: It always needs 7-10 working days via express such as DHL and UPS,15-30 working days by China Post,20-35working days by shipping.
Q: Can you customize the production with the customer’s brand?
A: Yes, OEM&ODM service is warmly provided. Any requirement please free to contact us, we will be a pleasure to provide the solution and the best price.
Features:
1. Power control: Yes, weak current switch control output, optional: remote control or battery control
2. Charging and discharging form: charging and discharging with different ports at the same end, BMS at the same end, divided into two ports
3. Charging port and wiring parameters: The charging terminal adopts 50mm, red and black +350A Anderson plug connectors (gray) installed on the battery box.
4. Discharge port and wiring parameters: The discharge terminal adopts 50mm, red and black +350A Anderson plugs (gray). With 350A gray Anderson plug +50mm RV copper wire, the length of red and black cables is 100cm.
5. Communication port A and wiring parameters: RS-485 communication, the interface adopts a 5-core 0.5mm sheathed cable, the line length is 3m + GM16 type 5-core aviation plug and its female socket. End position definition (1: RS-485-A, 2: RS-485-B). Provide communication protocol for PLC to read. When communicating, choose one of the two, you cannot communicate at the same time. With display: ET-T480272-04304CT8M
Communication port B and wiring parameters: CAN communication, the interface shares a 5-core aviation plug, 0.5mm sheathed wire, and the wire length is 3m. End position definition (4: CAN-H, 5: CAN-L). Provide communication protocol for PLC to read.
6. Battery life2000 cycles, 0.5C charge and 0.5C discharge 80% DOD, capacitynominal capacity*80%
Characteristics:
1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap;
2. Long life cycle, 2000 times at 80% DOD;
3. It without heavy metals and environment friendly;
4. Maintenance free;
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability;
6. No memory effect.
Advantages of LifePO4 battery:
1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap
2. Long life cycle over 2000 times;
3. It without heavy metals and environment friendly.
4. Maintenance free
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
6. No memory effect
7. High-temperature performance is good
9. High safety, no explosion, no fire
10. Low self-discharge rate,≤3%/month
Why choose us?
We do custom batteries according to your request.
Voltage from 3.2v to 48v
Capacity from 600mah to 150ah
Discharge rate: normal, 2C,3C,5C,10C,20C, etc.
We can customize the battery for you, send an inquiry with the below information now!
Battery information Appliance information
Size Appliance name
Capacity Normal working current
Cable length Peak current
Connector Working voltage range
Application: Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Forklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
