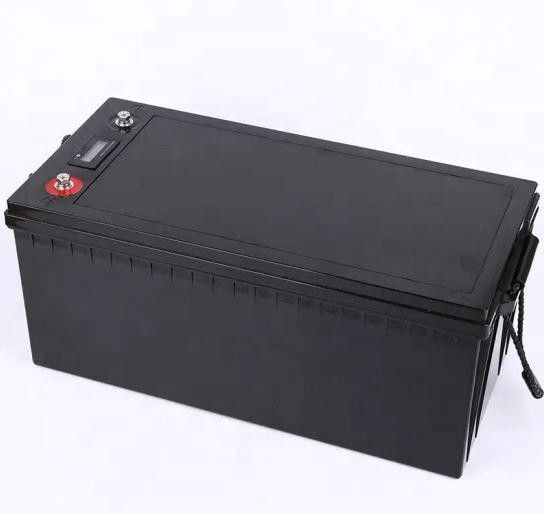

36V 50Ah LiFePO4 Battery Pack 12S9P Golf Cart Use With Internal BMS

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard Packing Delivery Time : 15-30days
Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram Supply Ability : 1000 Pieces per day
Place of Origin: CHINA Brand Name: Benwei

Detail Information

Battery Cell: 3.2V 6Ah LifePO4 Battery Cell Configuration: 12S9P
Case Material: ABS+PC Nominal Voltage: 36V
Nominal Capacity: 50Ah Charge Method: CC/CV
High Light:

36V 50Ah LiFePO4 Battery Pack

,

100mA LiFePO4 Golf Cart Battery

,

12S9P LiFePO4 Golf Cart Battery

Product Description

36V 50Ah LifePO4 Battery For Golf Cart

Model ML-32700/12S9P
Battery cell 3.2V 6Ah LifePO4 battery cell
Battery configuration 12S9P(12 series,9 parallel)
Case dimension 329*172*217mm(L*W*H)
Case material ABS+PC
Nominal voltage 36V
Nominal capacity 50Ah
Internal resistance ≤220m
End of charge voltage 43.8V
End of discharge voltage 32V
End of charge current 100mA
Charge method CC/CV
Standard charge current 10A
Max charge current 25A
Standard discharge current 25A
Max continuous discharge current 60A
Max pulse discharge current 120A
Net weight 14KG
Terminal M8 connector
Charge temperature 0~45℃
Discharge temperature -10~55℃
Storage temperature -10~45℃
Lifecycle 2000 times
Warranty 3 years
BMS protection over-charge,over-discharge,over-current,short circuit and balance function



Advantages of 36V 50Ah LifePO4 battery:

1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap

2. Long life cycle over 2000 times;

3. It without heavy metals and environment friendly.

4. Maintenance free

5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.

6. No memory effect

7. High-temperature performance is good

9. High safety, no explosion, no fire

10. Low self-discharge rate,≤3%/month



Applications :

Wheelchairs and scooters
Solar/wind energy storage

Back-up power for small UPS

Golf trolleys & buggies
Electric bikes
