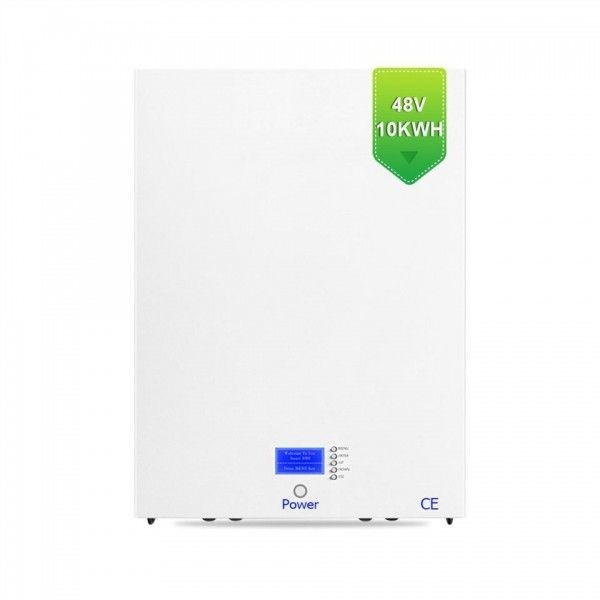

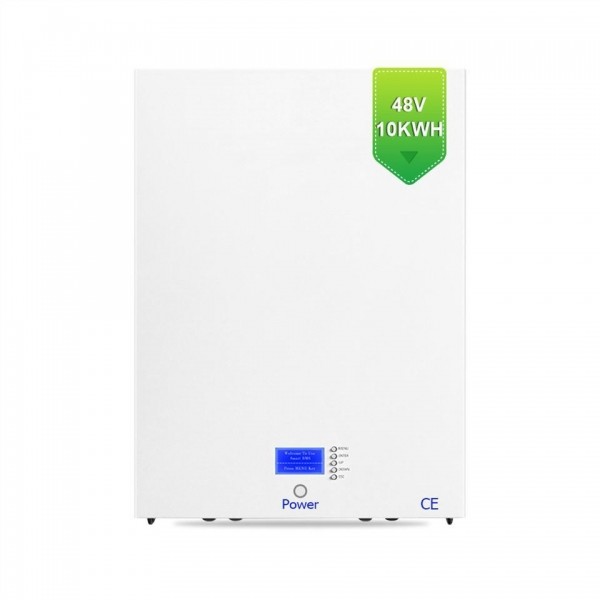

10kWh Power Wall Battery 48V 200Ah Solar Battery Backup System For Home

Minimum Order Quantity :	Negotiable	Price :	Negotiable
Packaging Details :	Standard Packing	Delivery Time :	15-30days
Payment Terms :	T/T,L/C,Western Union,Paypal and MoneyGram	Supply Ability :	1000 Pieces per day

Place of Origin:	CHINA	Brand Name:	Benwei

Detail Information
Model:	48V 200Ah	Energy:	10kWh
Charge Mode:	0.2C To 54V	Charge Current:	60A
Max. Charge Current:	100A	Cell & Method:	3.2V50Ah 16S4P
High Light:	10kWh Power Wall Battery , 48V 200Ah Power Wall Battery , Solar Battery Backup System For Home

Product Description

LiFePo4 Power Wall Lithium Battery 48V 200Ah 10kWh Power Bank Wall Charger For Wind Solar UPS

Power Wall LiFePo4 Battery:

1. 48V 5kWh 7kWh 10kWh;

2. Up to 6000 cycle life;

3. 3 years warranty or more over;

4. RS485/CAN Communications;

5. Built-in BMS;

6. Parallel connection up to 14 units

Specifications:

Electrical Characteristics	Model	48V 200Ah (Customizable LCD)
	Energy	10kWh
	Months Self Discharge	<3%
Standard Charge	Charge Voltage	53.2-54V
	Charge Mode	0.2C to 54V, then 54V,charge current to 0.02C (CC/CV)
	Charge Current	60A
	Max. Charge Current	100A
	Charge Cut-off Voltage	57.6±0.2V
Standard Discharge	Max continuous discharge current	200A
Standard Discharge	Discharge Cut-off Voltage	40V
Environmental	Charge Temperature	0to 45(32F to 113F) @60±25% Relative Humidity
	Discharge Temperature	-20to 60(-4F to 140F) @60±25% Relative Humidity
	Water Dust Resistance	Customizable
Mechanical	Cell & Method	3.2V50Ah 16S4P
	Shell material	Iron
	Dimensions (in./mm.)	Customized
	Weight (lbs./kg.)	Approx: 85kg
	Gravimetric specific energy	90.5Wh/KG
