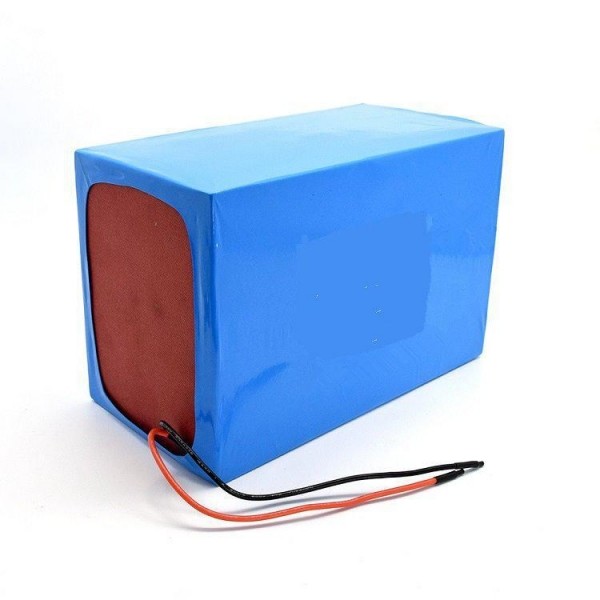

OEM 768Wh LiFePO4 Ebike Battery 24V 30Ah Lithium Ion Battery

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard Packing Delivery Time : 15-30days
Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram Supply Ability : 1000 Pieces per day
Place of Origin: CHINA Brand Name: Benwei

Detail Information
Battery Type: LiFePo4 Voltage: 24V
Capacity: 30Ah Cycle Life: Over 2000cycles
Size: Customized Protection: Built-in BMS
Warranty: 36 Months
High Light:

768Wh LiFePO4 Ebike Battery

,

OEM LiFePO4 Ebike Battery

,

24V 30Ah Lithium Ion Battery

Product Description

24V 30Ah LiFePo4 Battery With BMS LED For Intelligent Guide Vehicles

Features:

Custom DIY LiFePO4 Battery Pack 24V 20Ah/ 30Ah/ 50Ah/ 60Ah/ 80Ah/ 100Ah/ 150Ah/ 200Ah

- Factory based high quality LiFePo4 battery packs, various capacity available for customers' choice;

- Our R&D team will provide professional advice whenever there is any question, we are aiming at providing entire power solution to customers.

- We have established our own quality assurance system to ensure the good quality of every single product, and we'll be responsible for any customer complain.

- We are always here to provide the best service to you.

Specifications:

Electrical Characteristics

Nominal voltage

25.6V



Nominal capacity

30Ah

Adjustable

Energy

768Wh

Adjustable

Full charge voltage

29.2V



Discharge cut-off voltage

20V

Confirmed

Standard charging current

10~20A

Adjustable

Max Charge Current

30A

Adjustable

Continuous Discharge Current

30A

Adjustable

Peak Discharge Current

40A

Adjustable

Communication protocol

RS232/RS485/CAN

Adjustable

Mechanical Characteristics

Dimension



Adjustable

Charging Temperature

0℃- 45℃



Discharging Temperature

-20℃ - 60℃



Storage Temperature

-20℃ to + 60℃



Certification

UL/IEC/ROHS/UN38.3



Warranty

36 months

Enable to prolong

OEM 768Wh LiFePO4 Ebike Battery 24V 30Ah Lithium Ion Battery 0

Advantages of LifePO4 battery:
1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap
2. Long life cycle over 2000 times;
3. It without heavy metals and environment friendly.
4. Maintenance free
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
6. No memory effect
7. High-temperature performance is good
9. High safety, no explosion, no fire
10. Low self-discharge rate,≤3%/month

Why choose us?
We do custom batteries according to your request.
Voltage from 3.2v to 48v
Capacity from 600mah to 150ah
Discharge rate: normal, 2C,3C,5C,10C,20C, etc.
We can customize the battery for you, send an inquiry with the below information now!
Battery information Appliance information
Size Appliance name
Capacity Normal working current
Cable length Peak current
Connector Working voltage range
