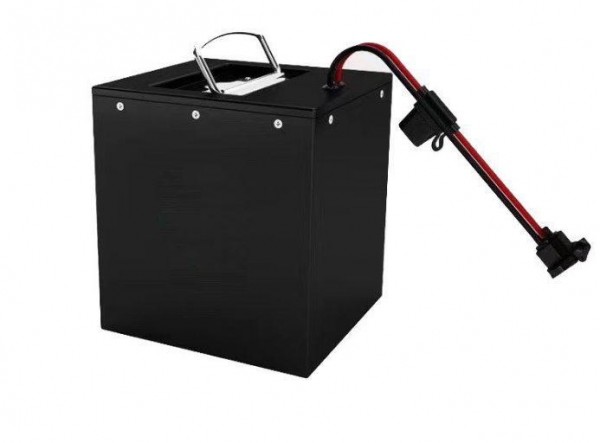

LiFePo4 1024 Wh 48V 20Ah Lithium Ion Battery Pack With BMS Long Cycle Life

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard Packing Delivery Time : 15-30days
Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram Supply Ability : 1000 Pieces per day
Place of Origin: CHINA Brand Name: Benwei

Detail Information

Nominal Capacity: 20Ah Nominal Voltage: 48V
Dimension: 150*150*300mm Customized Energy: 1024 Wh
Cycle Life: Over 2000cycles Standard Discharging Method: 4A
Standard Charging Method: CC And CV
High Light:

48V 20Ah Lithium Ion Battery Pack

,

48V LiFePo4 Battery Pack With BMS

,

1024 Wh LiFePo4 Battery Pack With BMS

Product Description

48V 20Ah LFP Battery

Features:

1. Large and safe LiFePO4 cells inside
2. Compact in size and light in weight (dimensions)
3. BMS manages to each cell for high reliability
4. Extra long cycle life - 5 times life of Lead Acid and 2 times of LiMn
5. Extremely safe: No explosion, no fire under collision, over charged or short circuit



48v 20Ah battery parameters:

Nominal Capacity

20Ah @ 23±2℃

Standard charge and discharge

Nominal Voltage

48V

Weight

Around 9kg

Dimension

150*150*300mm

Customized

Energy

1024 Wh

Nominal Capacity

20Ah

Full Charge Voltage

40±0.15V

Discharge End Voltage

58.4±0.3V

Standard Charging Method

CC and CV

Tempeature23±2℃,charge end with 2.5h or current drops to 0.02C

Max.Charge Current

20A

Temperature23±2℃

Standard Discharging Method

4A

Constant Current Discharge with 0.2C

Max.Discharge Current

20A

Discharge Time: Less than 60 s(at23±2℃)

Cycle life

Over 2000cycles

Retention ≥80% of initial capacity

Operating Temperature

0℃~45℃

Charging Operating



-20℃~45℃

Discharging Operating


Advantages of LifePO4 battery:
1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap
2. Long life cycle over 2000 times;
3. It without heavy metals and environment friendly.
4. Maintenance free
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
6. No memory effect
7. High-temperature performance is good
9. High safety, no explosion, no fire
10. Low self-discharge rate,≤3%/month


Application
Electrical Vehicles, electric mobility
Solar /wind energy storage system
UPS, backup power
Telecommunication
Medical equipment
And so on
