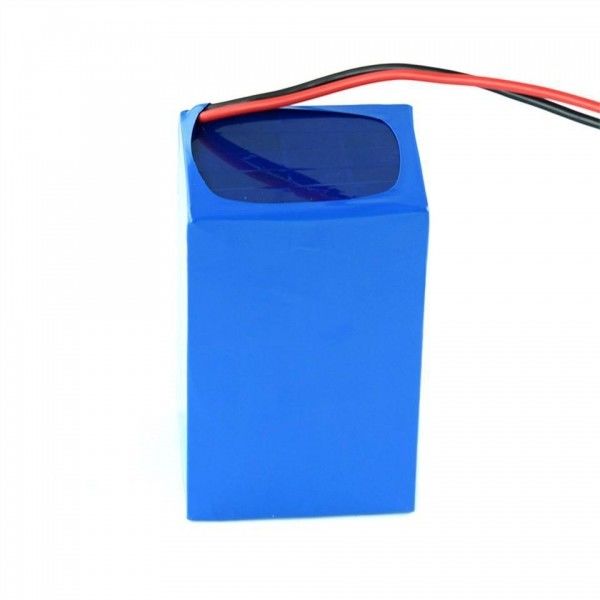

8S7P LiFePO4 Battery Pack 24V 20Ah Lithium Ion Battery Long Cycle Life

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard Packing Delivery Time : 15-30days
Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram Supply Ability : 1000 Pieces per day
Place of Origin: CHINA Brand Name: Benwei

Detail Information
High Light:

8S7P LiFePO4 Battery Pack

,

24V 20Ah LiFePO4 Battery Pack

,

24V 20Ah Lithium Ion Battery

Product Description

24V 20Ah Robot Battery

Features& Advantage:

1. High battery operation capacity and stable discharge voltage
2. Light weight, smaller size and higher performance than any rechargeable battery
3. Small inner resistance
4. Outstanding discharge properties and storage capacity
5. Pollution free, longer cycle life,No memory effect
6. Original factory price, high quality
8. Suitable for most electronic devices, especially power tool such as e-bike and drill.

Product Specification:

Normal Voltage

24V

Normal Capacity

20Ah

Battery Energy

480Wh

Inner Resistance

< 60m

Battery Cycle Life

2000 Times @100%DOD
6000 Times @80%DOD

Cell Configuration

LiFePO4 26650 3.2V 3200mAh-8S7P

Reference Battery Size

(168±1)*(128±1)*(102±1) mm

Support customized with your need

Reference Battery Weight

2.9±0.2 kg

Battery Encapsulation

Plastic Case/PVC/Metal optional

Full Charge Voltage

28.8 ~ 29.2V

Charge Mode

CC/CV

Normal Charge Current

≤20A

Normal Discharge Current

10A

Max. Continuous Output Current

20A

Max. Continuous Output Power

480W

Passive Protection Function

Over charge protection; Over discharge protection; Over current protection, etc

Operation Temperature Range

Charge: 0'C---45'C
Discharge-20'C---60'C

Battery Storage Temperature

-20'C---25'C

Individual Cell Approval

CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB
Why choose us?
We do custom batteries according to your request.
Voltage from 3.2v to 48v
Capacity from 600mah to 150ah
Discharge rate: normal, 2C,3C,5C,10C,20C, etc.
We can customize the battery for you, send an inquiry with the below information now!
Battery information Appliance information
Size Appliance name
Capacity Normal working current
Cable length Peak current
Connector Working voltage range

Advantages of LifePO4 battery:
1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap
2. Long life cycle over 2000 times;
3. It without heavy metals and environment friendly.
4. Maintenance free
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
6. No memory effect
7. High-temperature performance is good
9. High safety, no explosion, no fire
10. Low self-discharge rate,≤3%/month
