Product Description

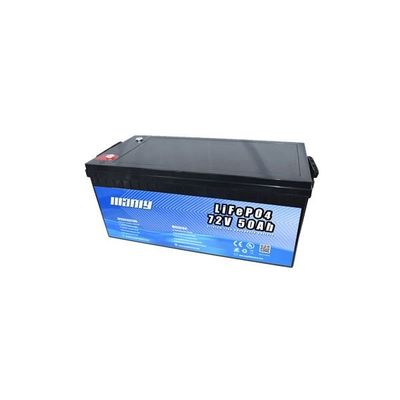

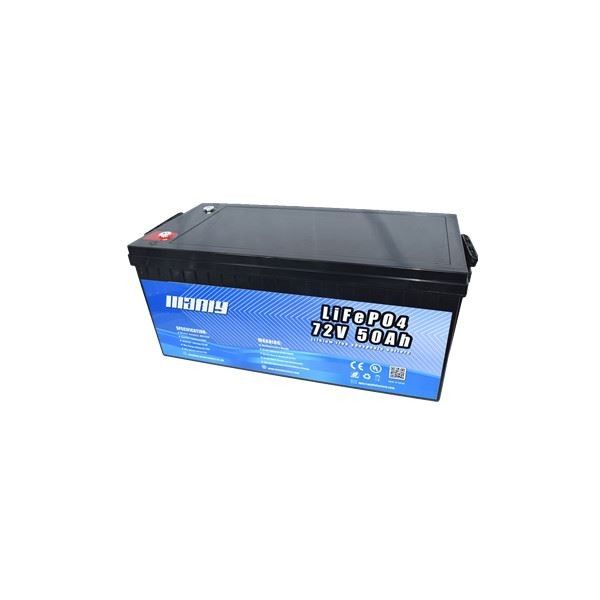

7360Wh 72v 50Ah Lithium Iron Phosphate Battery 3000 5000 Cycles
LiFePo4 Battery Pack 72v 50Ah Lithium Iron Phosphate Battery For Electric Motorcycle Towing Vehicles
Applications of LiFePO4 Battery Pack
· Passenger and commercial plug-in hybrid electric vehicles (PHEVs)
· Passenger and commercial battery electric vehicles (BEVs)
· Mild and micro hybrid vehicles · Long-Duration (LD) grid energy storage systems
1) Electric vehicles and charging stations,tourist coaches, yachts, wind and solar energy storage power, traffic signals
2) Solar hybrid street lighting, UPS power supply,home storage
3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations
4) Hospitals,finance, telecommunications , system critical backup power systems
| Nominal Voltage |
73.6V |
| Nominal Capacity |
50Ah |
| Energy |
7360Wh |
| Internal Resistance |
≤10mΩ |
| Cycle Life |
>3000 cycles@1C 100% DOD |
| Months Self Discharge |
<3% |
| Efficiency of Charge |
100%@0.5C |
| Efficiency of Discharge |
96-99% @1C |
| Charge Cut-off Voltage |
83.95±0.2V |
| Charge Mode |
0.2C to 83.95V, then 83.95V charge current to 0.02C(CC/CV) |
| Recommend Charge Current |
20A |
| Max. Charge Current |
100A |
| Max. Continuous Discharge Current |
100A |
| Max. Pulse Current |
200A(10S) |
| Discharge Cut-off Voltage |
57.5V |
| Charge Temperature |
0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature |
-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature |
0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance |
IP67 |
| Cell&Method |
23S |
| Package |
Metal Case |
| Dimensions(in./mm.) |
530*300*280mm |
Advantages of LiFePO4 Battery Pack
1. Long cycle life: with more than 3000 cycles, normal life time is more than 10 years.
2. Safety: The battery have built-in BMS to monitor the battery status and carry on protection to the battery.
3. Smaller size with larger capacity: Compared with Lead-acid battery, LiFePO4 battery is about 1/3 size and weight of it.
4. Excellent performance even in high temperature.
5. With high retention rate (2000 cycles 80%) and low self-discharge(less than 3%).
