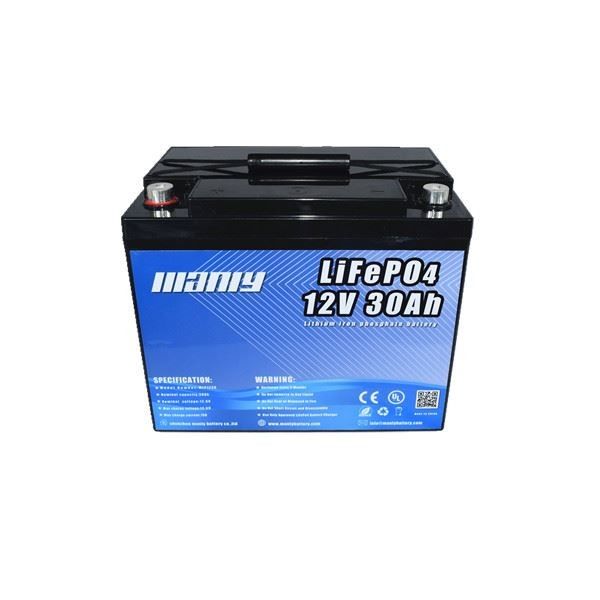

Rechargeable 12v 30ah Golf Cart Lithium Battery Eco Sources Lifepo4

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard Packing Delivery Time : 15-30days
Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram Supply Ability : 1000 Pieces per day
Place of Origin: CHINA Brand Name: Benwei
Model Number: 12v 30ah Lifepo4 Battery

Detail Information
Product Name: 12v 30ah Lifepo4 Battery Capacity Nominal Voltage: 12V/24V/36V/48V/Optional
Nominal Capacity: 7.5Ah/20Ah/40Ah/60Ah/100Ah/200Ah/300Ah/400Ah Battery Type: LiFePO4
Cycle Life: Over 2000 Times Cell Type: LFP32700
High Light:

12v 30ah Golf Cart Lithium Battery

,

LFP 32700 Golf Cart Lithium Battery

,

LFP 32700 12v 30ah Lifepo4 Battery

Product Description

Rechargeable 12v 30ah Golf Cart Lithium Battery Eco Sources Lifepo4



Eco-Sources Deep Cycle Rechargeable 12v 30ah Lifepo4 Battery For Solar / Power Tools/ UPS



12v 30ah Lifepo4 Battery​ Feature



❖ Green New Energy: Lithium battery is no toxic and pollution during manufacturing and using.



❖ Long Lifespan: The battery discharge capacity is still over 80% after 2000cycle times of single cell(80%DOD).



❖ High Efficiency: Standard charge current is 0.2C~0.5C, max charge current is 1C, max pulse current up to 2C for 10 seconds.



❖ High Safety: When the battery internal pressure is too large then reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



❖ Excellent Performance: Professional structure design make the battery performance work under 60 Celsius high temperature and -20 Celsius low temperature .



Golf Cart Lithium Battery Specifications:



Deep cycle Rechargeable 12V 30Ah LiFePO4 Battery with BMS

Electric Characteristics

Rated Capacity

30Ah

Energy

384Wh

Nominal Voltage

12V

Specific Energy

102.4Wh/kg

Internal Resistance

≤50mΩ

Cycle Life

2000+

Charging and Discharging Parameters

Charge cut-off volt

14.6V

Discharge cut-off volt

10V

Maximum Charge current

30A

Maximum Discharge current

30A

Peak Discharge current

14.6V

Suggested charge Volt

14.6V

Operation Temperature Parameters

Storage Temperature Parameters

Charge

0~45℃

Less than a year

0~25℃

Discharge

-20~60℃

Less than three months

-10~35℃

Recommended

18~28℃





Mechanical Properties

Dimension Length

165mm
(6.49 inches)

Housing materials

ABS

Dimension Width

125mm
(4.92 inches)

Terminal size

M6/M8 optional

Dimension Height

175mm
(6.89 inches)

Cell model

3.2v 6ah

Weight

About 6.5kg

Configuration

4S5P

BMS function

Protect battery from Overcharge, Over-discharge, Over-current, Short circuit

Advantage

High safety
(no fire, no explosion)

Lightweight

High energy density

Long lifespan

Environmentally friendly

Waterproof

No memory effect

Easy maintenance



Application: Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Forklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies



Attentions

(1) Please check everything include spare parts are completed when you receive and open the package

(2) Please read operation manual carefully and strictly follow it.

(3) Please charge the new battery to full capacity before discharge for the first use.

(4) Please take care to avoid over charge and over-discharge.

(5) Please use the suitable charger for the lithium battery.

(6) Please do not disassemble the battery without permission.

(7) Please feel free to contact us for help when you meet any problem.
