4S3P Golf Cart Lithium Battery 12V 9Ah Rechargeable LiFePO4 IP55

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Standard Packing Delivery Time : 15-30days
Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram Supply Ability : 1000 Pieces per day
Place of Origin: CHINA Brand Name: Benwei

Detail Information

Voltage: 12.8v Capacity: 9Ah Or Custom
Energy: 115.2Wh Internal Resistance: ≤80m
Capacity Months Self-discharge: ≤3.5% Per Month At 25℃ Max.Charge Current: 4.5A
High Light:

4S3P Golf Cart Lithium Battery

,

LiFePO4 12V 9Ah Rechargeable Battery

,

IP55 12V 9Ah Rechargeable Battery

Product Description

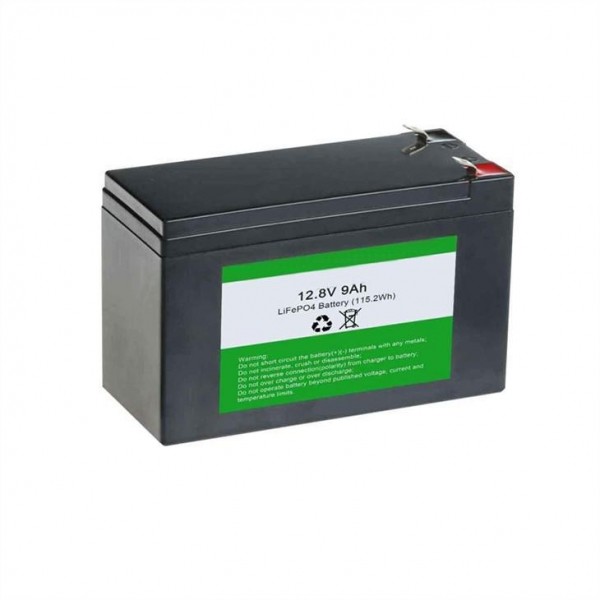

12V 9Ah LiFePo4 Golf Cart Battery



Electrical Characteristics

Nominal Voltage

12.8v

Nominal Capacity

9Ah @ 0.2C

Energy

115.2Wh

Internal resistance

≤80m

Cycle Life

>2000 cycles @ 0.2c charge/ discharge at 100%DOD,End of life 70% capacity

Months Self-discharge

≤3.5% per month at 25℃

Standard Charge

Charge voltage

14.6±0.2V

Charge Mode( CC/CV)

At 0℃~45℃ temperature, charged to 14.6v at a constant current of 0.2C5A, and then, changed continuously with a constant voltage of 14.6v until the current was not more than 0.02C5A

Charge current

1.8A

Max.Charge current

4.5A

Standard Discharge

Discharge current

1.8A

Max.continuous current

9A

Max. Pulse current

20A (<3S)

Discharge cut-off voltage

10.0V

Environmental

Charge Temperature

0℃ to 45 ℃

Discharge Temperature

-20℃ to 60 ℃

Storage Temperature

0℃ to 45 ℃

Water Dust Resistance

IP55

Mechanical

Cell & Method

IFR26650,4S3P

Plastic Case

ABS

Dimension (L*W*H*TH)

151*65*100mm

Weight

Approx. 1.34KG

Terminal

F2





Why choose us?
We do custom batteries according to your request.
Voltage from 3.2v to 48v
Capacity from 600mah to 150ah
Discharge rate: normal, 2C,3C,5C,10C,20C, etc.
We can customize the battery for you, send an inquiry with the below information now!
Battery information Appliance information
Size Appliance name
Capacity Normal working current
Cable length Peak current
Connector Working voltage range





Advantages of LifePO4 battery:
1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap
2. Long life cycle over 2000 times;
3. It without heavy metals and environment friendly.
4. Maintenance free
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
6. No memory effect
7. High-temperature performance is good
9. High safety, no explosion, no fire
10. Low self-discharge rate,≤3%/month



Application: Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Forklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
