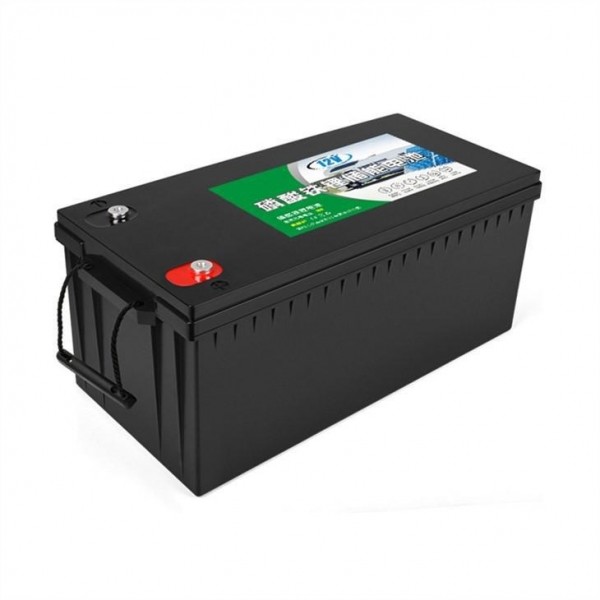

Features:
1. Can replace the lead-acid battery for the whole car power supply
2. Solar panel charging, anytime and anywhere safe use
3. Supports multiple charging methods: municipal electricity, car charging, solar energy
4. Internal special bracket is fixed
5. More charging and discharging times, longer service life, economic and environmental protection
Specifications:
|
Battery nominal voltage
|
12.8V
|
|
Battery model
|
ML-12V-200AH
|
|
Nominal capacity (0.2C5A)
|
200Ah
|
|
Continuous working current (A)
|
100A
|
|
Peak discharge current (A)
|
300A
|
|
Standard charging current (A)
|
50A
|
| Maximum charging current (A) |
100A
|
|
Battery operating voltage range (V)
|
14.6V-10.0V
|
|
Charge protection cut-off voltage (V)
|
14.6V
|
|
Discharge protection cut-off voltage (V)
|
10.0V
|
|
Maximum load power (KW)
|
1.2KW
|
|
Charging and discharging port
|
Charging and discharging same end, positive/negative pole column. (M8 screw hole)
|
|
Battery size (mm)
|
L522×W238×H218/222 total height
|
|
Battery weight (kg)
|
About 23kg
|
|
Optional features
|
Support Bluetooth (mobile APP), RS-485 communication.
|
| Widely used in |
Home energy storage, energy storage power stations, low-speed electric vehicles, RV, special vehicles, testing equipment, security monitoring equipment, surveying instruments, medical equipment, etc. |
Advantages of LifePO4 battery:
1. Green energy, Non-toxic, non-polluting, a wide range of raw materials, cheap
2. Long life cycle over 2000 times;
3. It without heavy metals and environment friendly.
4. Maintenance free
5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
6. No memory effect
7. High-temperature performance is good
9. High safety, no explosion, no fire
10. Low self-discharge rate,≤3%/month
Why choose us?
We do custom batteries according to your request.
Voltage from 3.2v to 48v
Capacity from 600mah to 150ah
Discharge rate: normal, 2C,3C,5C,10C,20C, etc.
We can customize the battery for you, send an inquiry with the below information now!
Battery information Appliance information
Size Appliance name
Capacity Normal working current
Cable length Peak current
Connector Working voltage range
Application: Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Forklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
